EB3A | 600W | 268WH PORTABLE POWER STATION
If you can’t find a suitable charging device in our wholesale product catalog, please contact our engineers for a tailor-made solution.

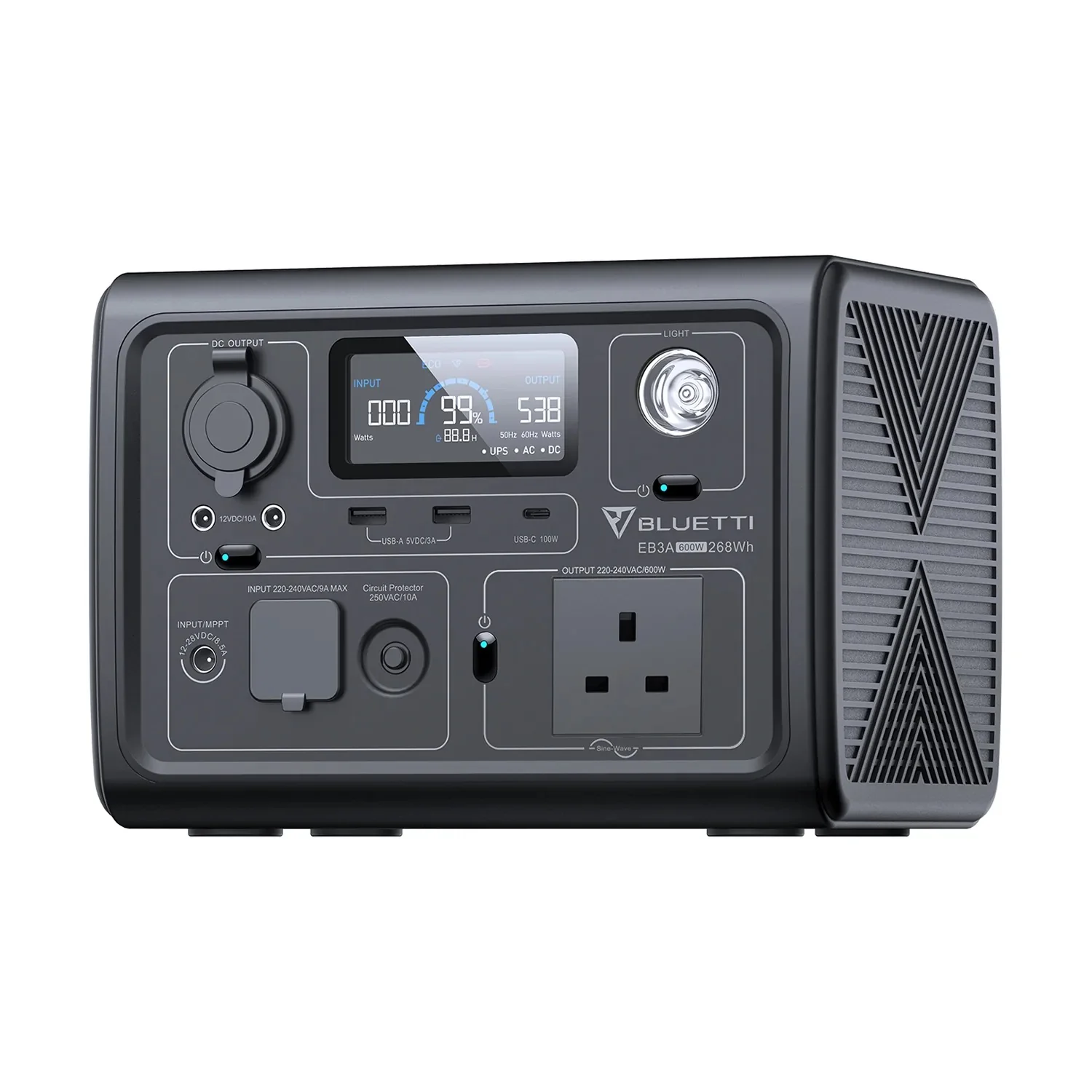

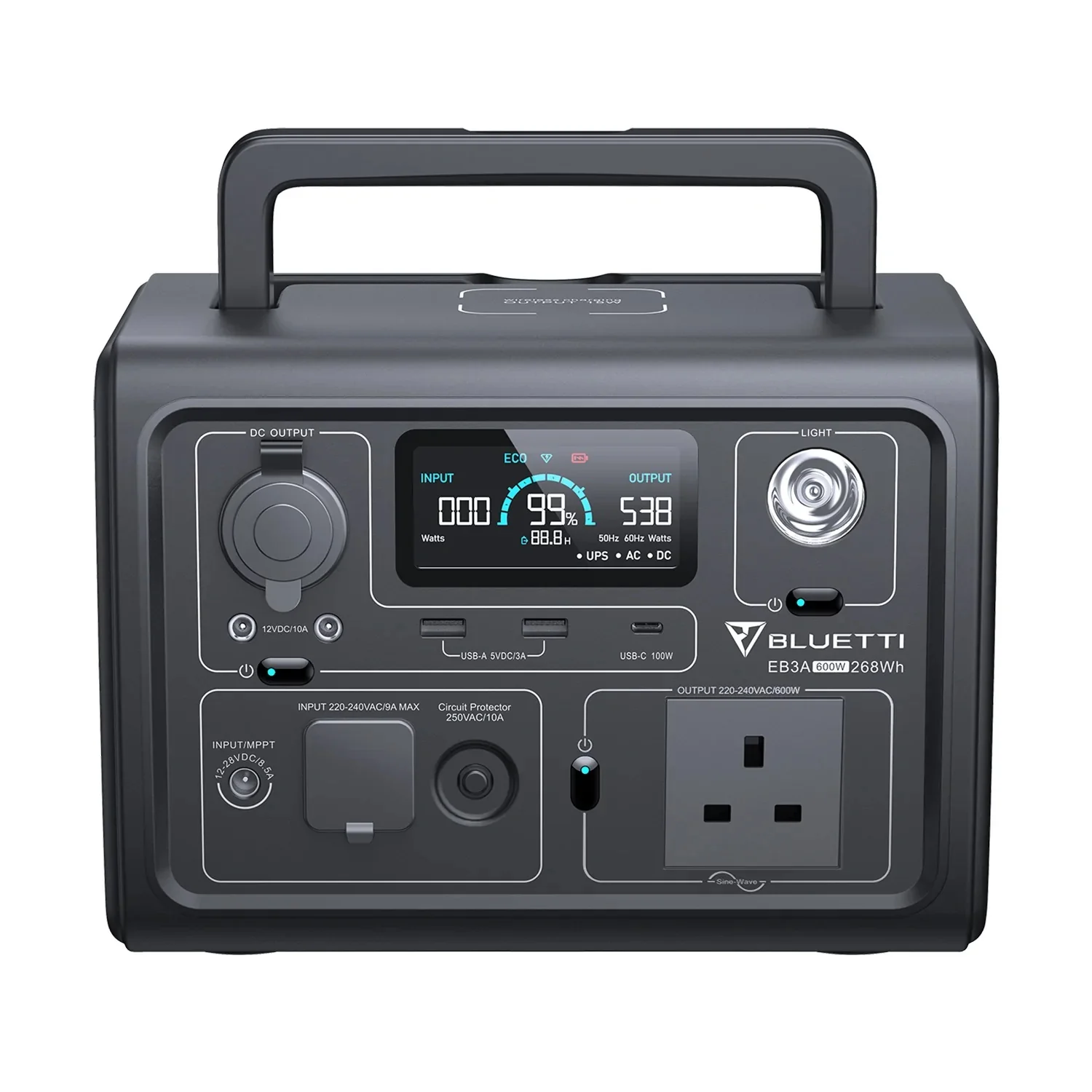

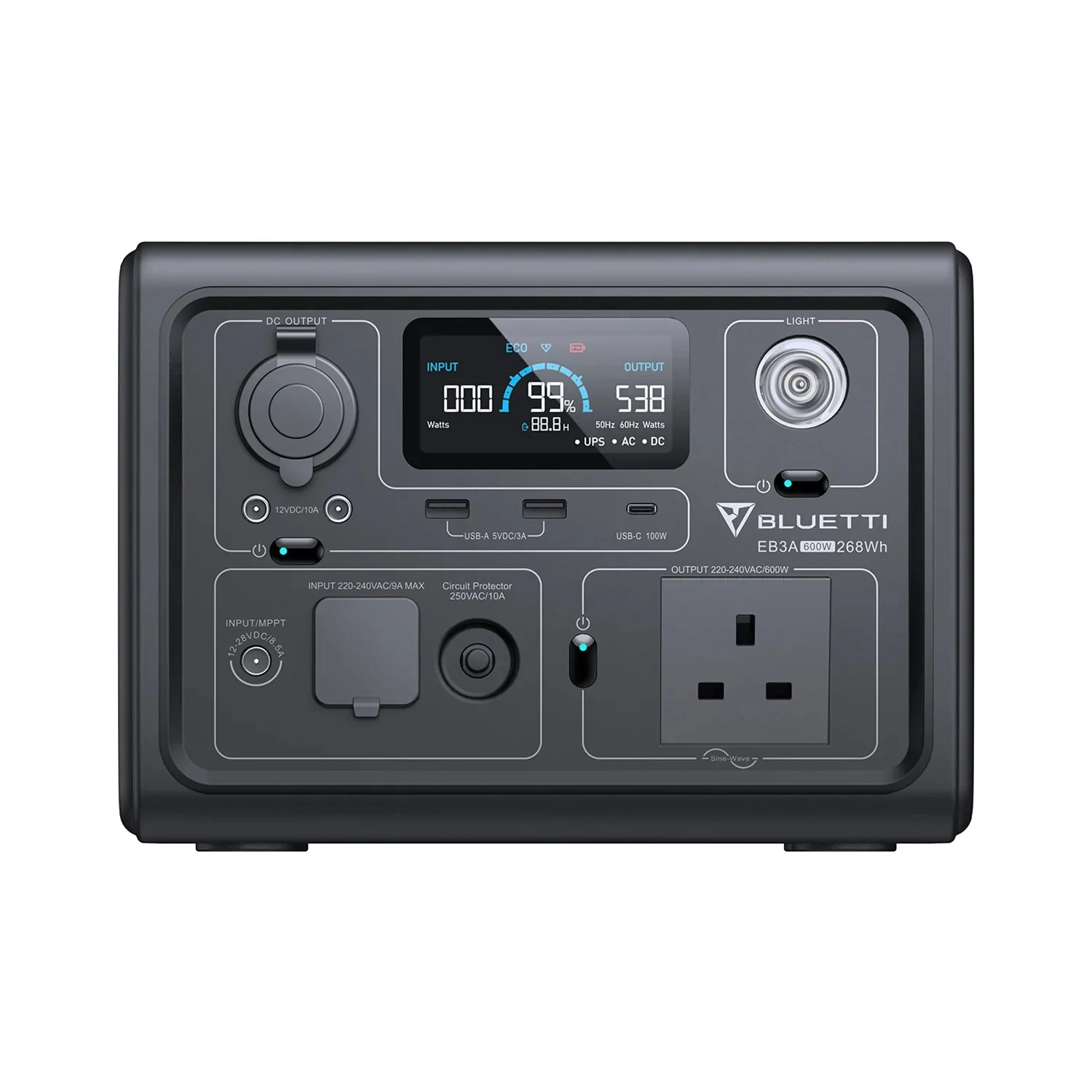

The EB3A is a compact portable power station with a 600W AC outlet, fast mains charging, 100W USB Power Delivery output, and a 268Wh long-lasting LiFePO4 battery. It has an app to control and monitor it via Bluetooth. These power stations are perfect for power cuts, camping, travel, festivals, around the house, and out and about to charge all your tech. And the EB3A can charge at up to 200W off solar panels alone when mains isn’t available.
Benefits:
- AC Pure Sine Wave Inverter: 600W and 1,200W surge capability
- Powerful Capacity: 268Wh with Fast Charging Capability
- Durable Battery: LiFePO4 Battery with 2,500+ Life Cycles to 80% of the original capacity
- Versatile Recharging: 6 Ways to Recharge (AC / Solar / Car / Generator / AC+Solar / AC+Adapter)
- Multiple Outputs: 8 Outputs for Charging Multiple Devices at once
- Smart Control: Monitor via the App

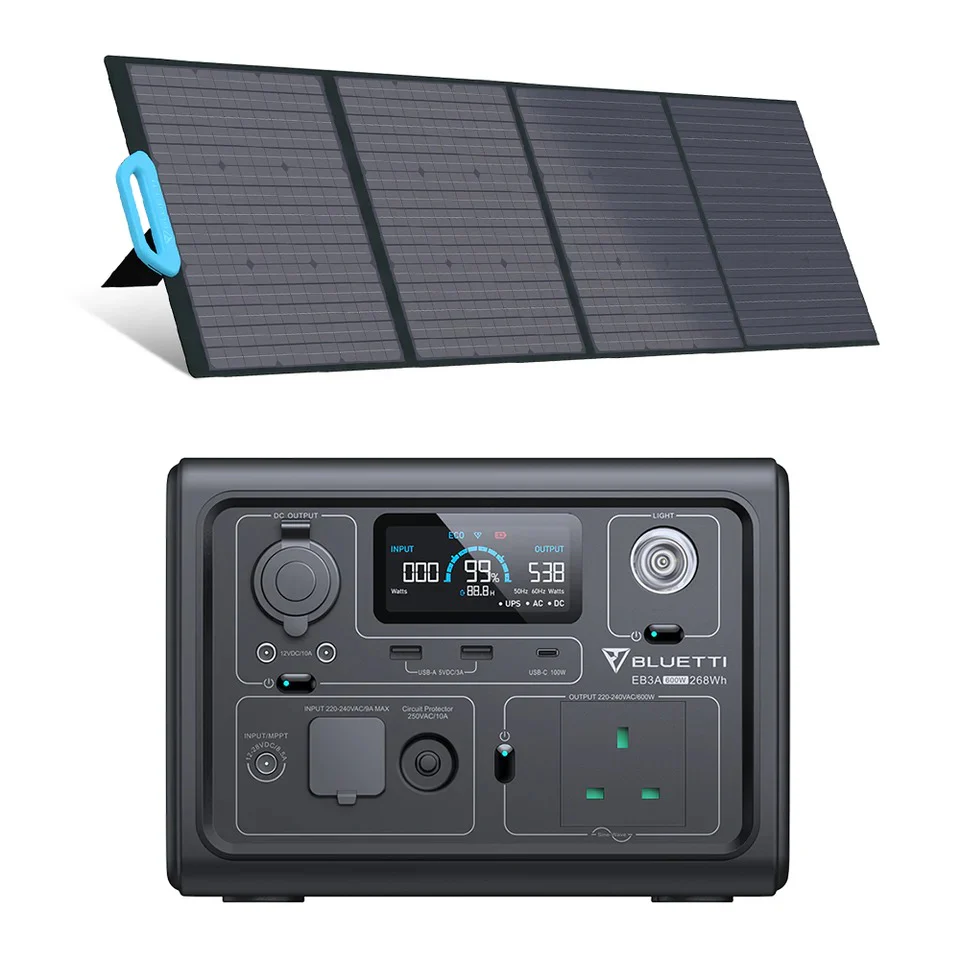

- Efficient Solar Input: 200W Max. Solar Input
- Safety & Reliability: Safe & Reliable Performance
SPECIFICATIONS
BATTERY INFO
|
Capacity: 268.8Wh (12Ah)
|
|
Type: LiFePO4 (Lithium Iron Phosphate)
|
|
Life Cycles: 2,500+ Cycles to 80% of the Original Capacity
|
|
Shelf-life: Recharge to 80% Every 3-6 Months
|
|
Management System: MPPT Controller, BMS, etc.
|
OUTPUT
|
AC Outlets: 1 x 220V-240V/2.6A Outlets, 600W In Total
|
|
Inverter Type: Pure Sine Wave
|
| Surge Power: 1,200W |
| USB-C Port: 1 x 100W Max. |
| USB-A Port: 2 x 5V/3A USB-A |
| DC Outlets: 1 x 12V/10A (Car Outlet); 2 x 12V/10A DC 5521 (5.5mm Outlets) *All Regulated. |

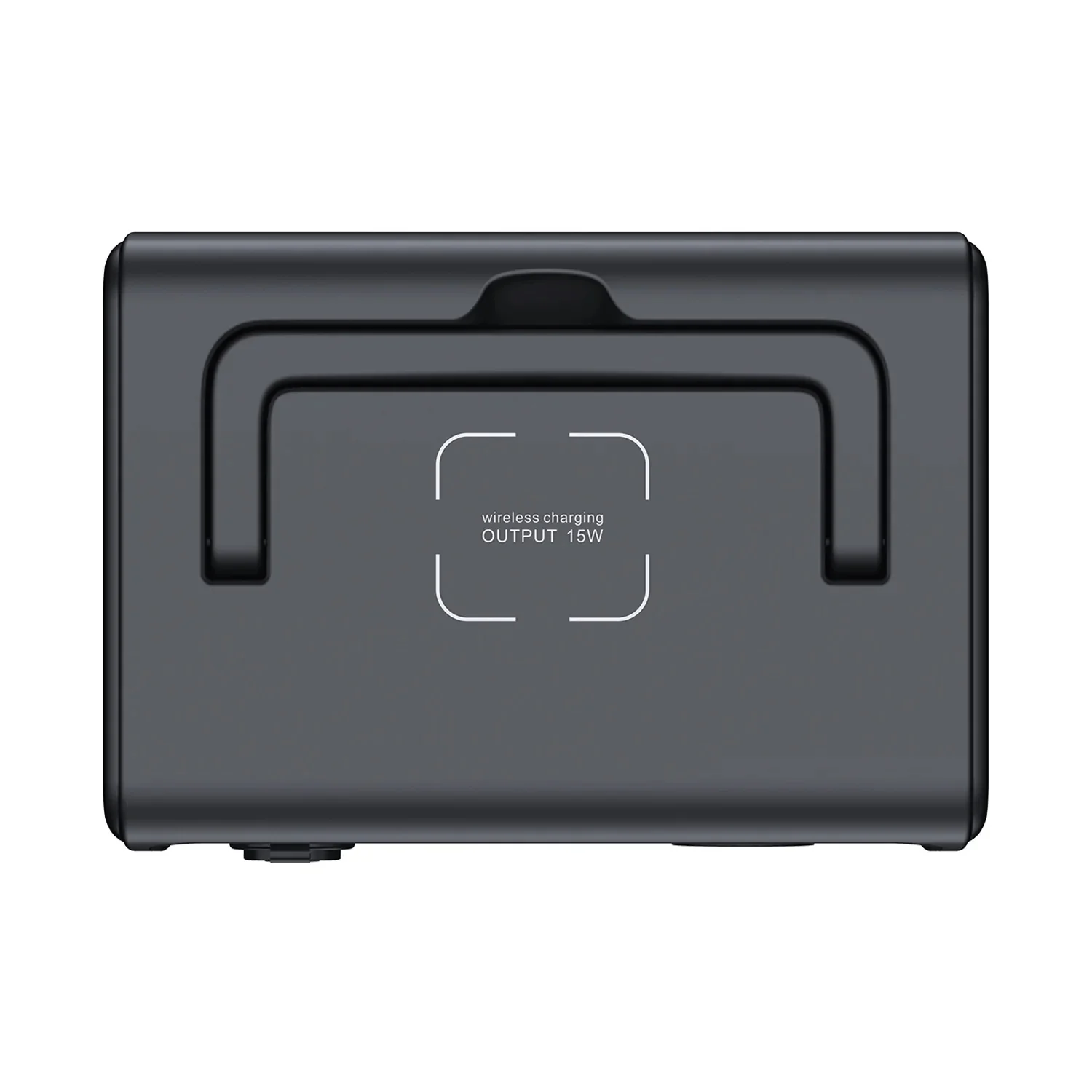

| Wireless Charging Pad: 1 x 15W Max. |
INPUT
|
AC Charging Cable (Standard Mode): 268W Max.
|
|
AC Charging Cable (Turbo Mode): 330W Max.
|
|
Solar Input: 200W Max, VOC 12-28VDC/ 8.5A
|
|
Car Input: 12/24V from Cigarette Lighter Port
|
|
Maximum Input: 430W, with AC and Solar Input Simultaneously
|
RECHARGE TIMES
|
AC Charging Cable (Turbo Mode 330W): ≈1.3-1.8 hours
|
|
AC Charging Cable (Standard Mode 268W): ≈1.5-2.0 hours
|
|
Solar (200W): ≈1.8-2.0 hours (with strong sunshine, advantageous orientation, and low temperature)
|
|
12V/24V Car Outlet (100W/200W): ≈3.2-3.7 or 1.9-2.4 hours
|
|
AC + Solar (430W): ≈1.2~1.7 hours (with strong sunshine, advantageous orientation and low temperature)
|
|
Dual AC (430W): ≈1.2~1.7 hours (with optional BLUETTTI T200S adapter)
|
GENERAL
|
Pass-through Charging: Yes
|
|
Weight: 10.14lbs/4.6kg
|
|
Dimensions (LxWxD): 10.04*7.09*7.20in/255*180*183mm
|
|
Operating Temperature: -4-104℉ (-20-40℃)
|
|
Storage Temperature: 32-104°F (0-40°C)
|
|
Certifications: UL Standard, CEC, DOE, FCC, CA Prop 65
|
|
Warranty: 24 Months
|
